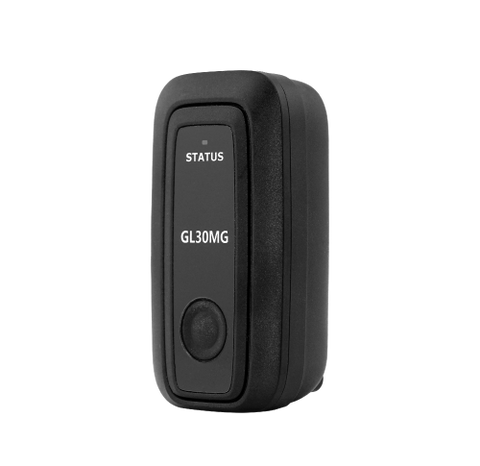

GL30MG

 Description:

GL30MG is a micro real-time tracker with LTE Cat M1/NB2 and 2G fallback. It is designed for diverse applications requiring accurate location tracking, such as personal safety, animal management, asset monitoring, and package delivery.


**Cables Sold Separately

 UART CABLE - Firmware Upgrades
USB Cable - Configuration
(required for firmware, upgrades or configuration)

Queclink Flyer - Click to Open PDF

 Features:
    • LTE CAT M1/NB2 Fallback 2G
    • BLE 5.2
    • Wi-Fi Scan (Location)
    • Neighbor Cell Info Report (Location)
    • Function Button
    • Internal Buzzer
    • Up to 10,000 Buffer Messages
    • Motion Detection
    • Low Power Alarm
    • Battery Level Report
    • Supports OTA Update

    Region:  North America

    Certificate:  FCC, PTCRB, AT&T, T-Mobile, Verizon(Planning)

     Specifications:
    Operating Band Cat M1:
    LTE FDD: B2/B4/B12/B13/B66
    Cat NB2:
    LTE FDD: B2/B4/B12/B13/B66
    Data Transmission eMTC (DL) 588kbps
    eMTC (UL) 1119kbps
    NB2 (DL) 127kbps
    NB2 (UL) 158.5kbps
    NB1 (DL) 34kbps
    NB1 (UL) 66.6kbps
    GNSS Type All-in-One GNSS receiver
    Sensitivity Autonomous: -148 dBm
    Hot start: -163 dBm
    Tracking: -165 dBm
    Position Accuracy (CEP) Autonomous: < 2.0m
    TTFF (Open Sky) Cold start: 24s average
    Hot start: 1s average
    Dimensions 60x31.7x19.66mm
    2.36x1.25x0.77inch
    Weight 37.6g(1.33oz)
    Internal Battery Li-Polymer 650mAh (Rechargeable Battery)
    Standby Time Continue Mode
    5 Min Reporting: 5 days
    10 Min Reporting: 8 days
    Power Saving Mode
    1 Report per Hour: 16 days
    1 Report per Day: 190 days
    **eMTC, UDP, Internal GNSS, WIFI & BLE
    off, GPS open sky, LTE Cat M1/NB2
    CSQ>15, operation temperature 10 °C~25 °C
    Waterproof IP67 compliant
    Charging Voltage 5V DC
    Buffer Messages Up to 10,000 buffer messages
    Operating Temperature -20 °C ~ +60 °C
    -20 °C ~ +60 °C for storage
    Transmit Protocol TCP, UDP, SMS
    Scheduled Report Report messages at preset time intervals
    Geo-fences Support up to 20 internal geo-fence regions Automatically reports when entering / exiting Geo-Fence
    Low Power Alarm Alarm when internal battery is low
    Power On/Off Report Report when the device is powered on and off
    SOS/Emergency Alarm SOS alarm via pressing function key
    Command Set @Track protocol command
    Motion Detection Motion alarm based on internal 3-axisaccelerometer
    OTA Support Remote configure parameters to change position interval, measurement interval, active/ deactivate sensor, upgrade
    Working Modes Power saving mode for long standby time Continuous mode for emergency tracking
    Function Button One activation/alarm Key
    LTE Antenna Internal only
    GNSS Antenna Internal only
    LED Indicators One RGB LED (CELL, Power, GNSS)
    BLE Antenna Internal Only
    Buzzer Metal Patch Buzzer
    SIM eSIM chip (MFF2 ESIM)


     Supported Accessories:
    • 10-in-1 Mgnetic Contact Charging Kit
