Description:
**DATA CABLE SOLD SEPARATELY: GL500M Data Cable **
GL500MG is the default model, if a different sub model is needed please include in the notes or contact us directly.

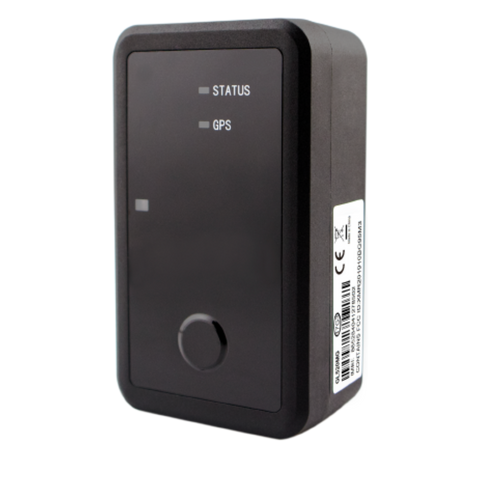

The GL500M asset tracker is a powerful IP67 compliant waterproof GNSS tracker powered by a CR123A lithium battery pack. Configuration allows the device to wake up on a preset schedule to check if it needs to shift from a dormant to active status and/or send an update of its current location, then return to a dormant state. Optimally configured, the device will operate of up to seven years. It’s built-in 3-axis accelerometer allows the GL500M to detect asset movement and transmit an alert message to a mobile phone or backend server via SMS though the integrated @Track interface protocol. System integrators can easily incorporate the GL500M into existing tracking systems based on this full featured protocol. The GL500M has an internal temperature sensor as well as an internal light sensor for tamper detection.
Features:
- Rapid & Covert Install
- 7 Years Standby Time
- OTA Control
- Scheduled Timing Report
- Geo-fences
- Waterproof
- Low Power Alarm
- Wakeup Report
- Motion Detection
- Automatic Mode Switching
- Temperature Monitoring
- Tamper Detection

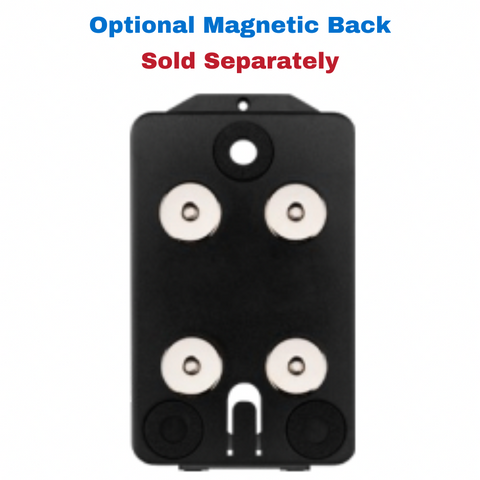

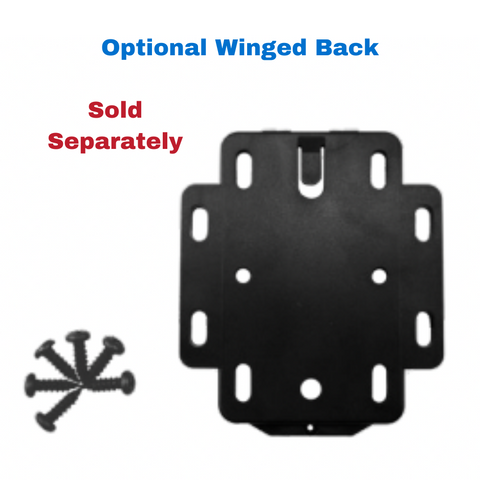

- Magnetic or Tapping Screw Mounting (Optional Ad-on)
| Region | Sub Model | Network/Operating Band | Certificate |
| North America | GL500MG_S | Cat M1/Cat NB1 LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25 */B28 LTE TDD: B39 (For Cat M1 Only) |
FCC/Sprint |
| Worldwide |
GL500MG | Cat M1/Cat NB1 LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (For Cat M1 Only) |
FCC/Verizon/PTCRB/AT&T/CE (Planned) |
*B25 is supported on GL500MG_S
Specifications
| Operating Band | Cat M1/Cat NB1 LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25 */B28 LTE TDD: B39 (For Cat M1 Only) |
| Data Transmission |
eMTC (DL) 375 Kbps eMTC (UL) 375 Kbps NB1 (DL) 32 Kbps NB1 (UL) 70 Kbps |
| GNSS Type | u-blox All-in-One GNSS receiver |
| Sensitivity |
Autonomous: -147 dBm Hot Start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.5m |
| TTFF (Open Sky) |
Cold Start: 27s average Warm Start: 27s average Hot Start: 1s average |
| Dimensions |
87mm(L) x 51mm(W) x 30mm(H) 87mm(L) x 51mm(W) x 33.5mm(H) (with mount) |
| Weight |
140g 160g (magnet-mounted version) |
| Internal Battery | 3 CR123A Lithium batteries, 1400 mAh |
| Standby Time |
Standby current: < 8 uA 1 report per day (GNSS on): 3 years 1 report per day (Cell ID only): 5 years |
| Waterproof | IP67 compliment |
| Operating Temperature | -20℃ ~ +60℃ |
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status at preset time intervals |
| Geo-fences | Support up to 5 internal geo-fence regions |
| Low Power Alarm | Alarm when internal battery is low |
| Wakeup Report | Report when the device wakes up |
| Motion Detection | Motion detection based on internal 3-axis accelerometer |
| Cellular Antenna | Internal Only |
| GNSS Antenna | Internal Only |
| Internal Temperature Sensor | For temperature monitoring, Accuracy : ±0.5% |

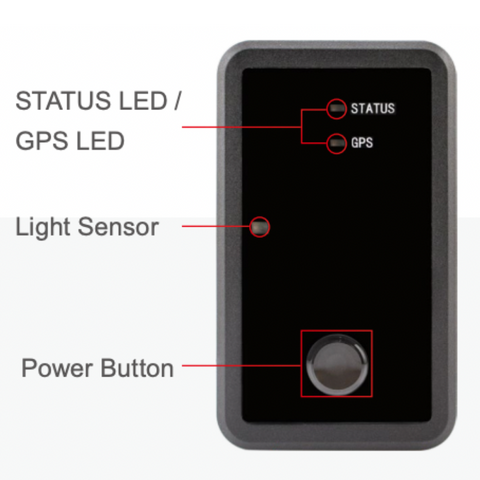

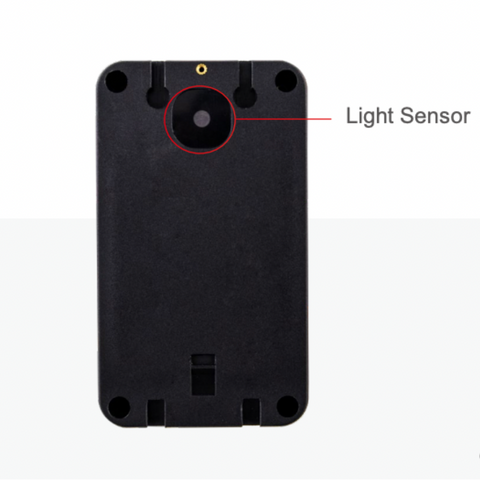

| Internal Light Sensor | For tamper detection |
| Internal Motor | For vibration feedback after successful operation of function button |
| Mounting Options | For easy installation on metal and non-metallic surfaces |
