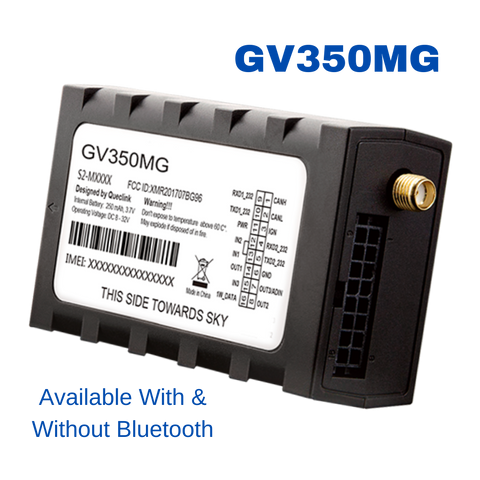

GV350M Queclink Vehicle Tracker
Description:
The GV350MG improves on the GV300 based on customer feedback and adds LTE capability to our successful GV300 2G product. The GV350MG’s CAN interface can be customized to suit specific protocols required by customers. This interface customization has been utilized in tractor integration and other unique situations with specific CAN requirements. Heavy trucks supporting J1939 FMS can be integrated with GV350MG and its multiple accessories such as dual fuel sensors, Garmin FMI products, cameras and Queclink’s I/O extenders.
**Data Cable Sold Separately: Data Cable M
Queclink Flyer - Click to Open PDF
Features::
- Wide Operating Voltage
- Multiple I/O Interfaces
- OTA Control
- Scheduled Timing Report
- Geo-fences
- Power On Report
- 1-wire Interface
- RS232 Ports
- Monitor Driving Behavior
| Region | Sub Model | Network/Operating Band | GNSS Type | Certificate |
| Worldwide |
GV350MG |
Cat M1/Cat NB1: LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28 |
u-blox All-in-One receiver | FCC, Verizon, CE, E-Mark, Anatel, UKCA |
Specifications:
| Operating Band |
Cat M1/Cat NB1: LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28 |
| Data Transmission | eMTC (DL) 375Kbps eMTC (UL) 375Kbps NB1 (DL 32 Kbps NB1 (UL) 70 Kbps |
| GNSS Type | u-blox All-in-One GNSS receiver |
| Sensitivity |
Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
| Position Accuracy (CEP50) | Autonomous: < 2.5m |
| TTFF (Open Sky) |
Cold start: 27s average Warm start: 27s average Hot start: 1s average |
| Dimensions | 80mm(L) x 48mm(W) x 25mm(H) |
| Weight | 75g |
| Backup Battery |
Li-Polymer, 250 mAh |
| Operating Voltage |
8V to 32V DC |
| Configurable Input/Output | 1 special I/O can be configured as a 0V-32V analog input or an open drain digital output with 150 mA max drive current |

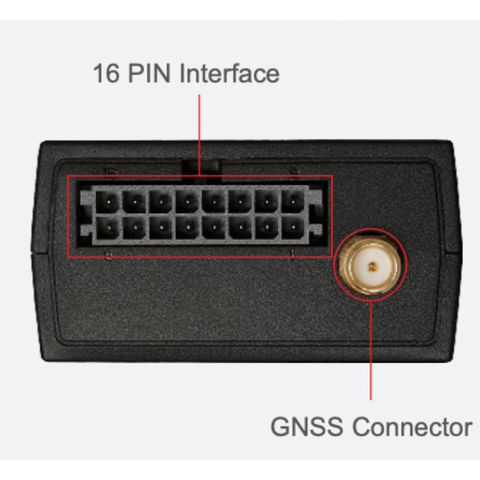

| Serial Ports | 2 RS232 serial ports on 16-pin Molex type connector for external devices |
| 1-wire Interface | Support 1-wire temperature sensor (maximum 8 channels) |
| Bluetooth Antenna |
Internal only |
| Bluetooth |
Supports BLE 4.0 protocol |
| Operating Temperature |
-30℃ ~ +80℃
-40℃ ~ +85℃ for storage
|
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage, or a combination of these settings |
| Geo-fences | Geo-fence alarm support up to 20 circular and 20 polygon geo-fence regions |
| Tow Alarm | Based on an internal 3-axis accelerometer |
| Power On/Off Report | Report when the device is powered on |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including harsh braking, acceleration, etc. |
| Crash Detection | Accident data collection for reconstruction and analysis |
| Special Alarm | Special alarm based on digital inputs |
| Remote Control | OTA control of digital outputs |
| Digital Inputs | 1 positive trigger input for ignition detection 3 negative trigger inputs for normal use |
| Digital Output | 1 digital output, open drain, 150 mA max drive current |
| Latched Digital Output | 1 digital output with internal latch circuit, open drain, 150 mA max drive current |
| GNSS Antenna | Internal patch antenna and optional external antenna (SMA type connector) |

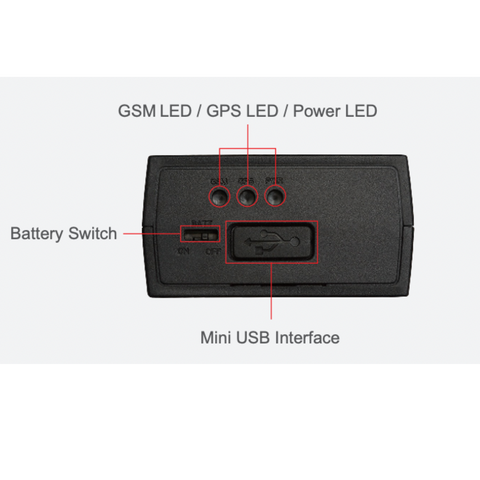

| LED Indicators | CEL ,GNSS, PWR |
| Mini USB Interface | Used for upgrading and debugging |
Supported Accessories:
- Data Cable M
- Active Buzzer 1m
- 1-wire Temperature Sensor Kit
- Relay with Socket
- RS232 Camera
- Antenna GPS SMA 3m
- UFS300
